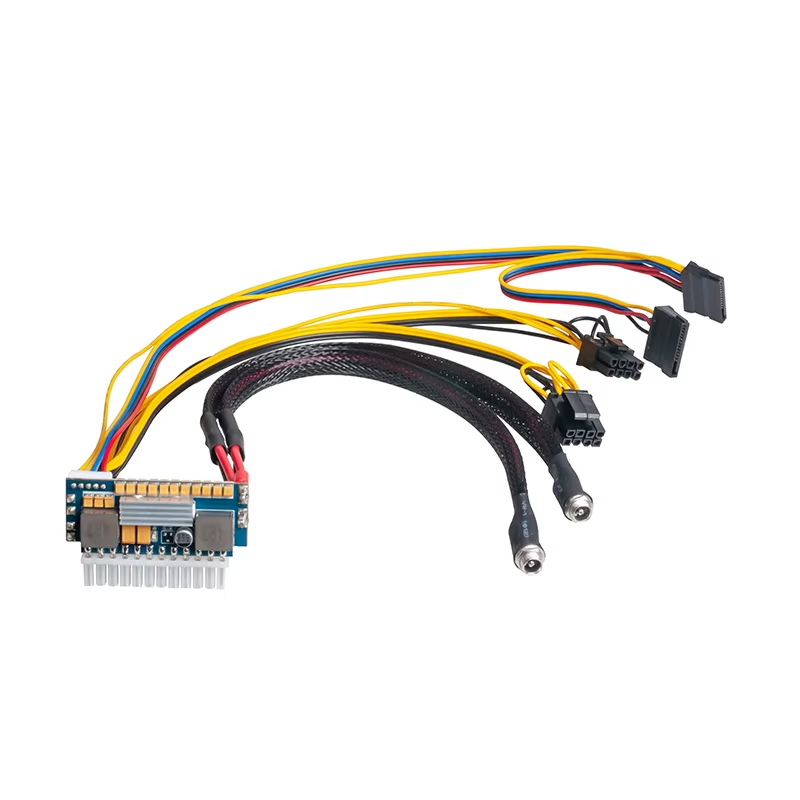

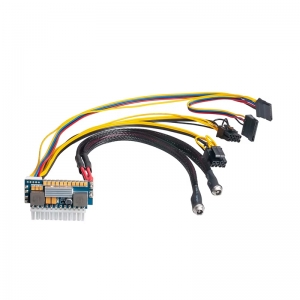

RGeek DC 12V 450W PICO DC PSU
High light:
- 450 Watt Output, 12V DC Input
- Fanless design, 100% silent
- Solid Polymer Caps on the PCBA, Long life.
- Perfect DC PSU for mini ITX Motherboards
- It supports to connect graphics card with 8pin cable.
- And there are two kinds of input interface to you to choose from.
Specifications:
INPUT VOLTAGE RANGE：11.4VDC—12.6VDC
INCOMING CURRENT RANGE：40.0A Max @11.4VDC
INPUT SURGING CURRENT：12.0Amax@12VDC
WORK EFFICIENCY：≥85%
Working temperature/humidity : -5℃ to 55℃ / 45%-75%
Reposition temperature//humidity : -40℃ to +70℃/ 10%-90%
Atmospheric pressure: 86Kpa—106Kpa
|
Item |
Output voltage |
Output current（A） |
|||||
|
min（V） |
avg（V） | max（V） | ripplewave（mV） | Sb current | avg |
peak |
|
|
+3.30V |
+3.14 | +3.30 | +3.47 | 50 | 0 | 8 | 10.0 |
|
+5.00VSB |
+4.75 | +5.00 | +5.25 | 50 | 0.1 | 1.5 |
2.0 |
|
+5.00V |
+4.75 | +5.00 | +5.25 | 50 | 0 | 8 |
10.0 |
|
+12.00V |
+11.40 | 12.00 | +12.60 | 120 | 0 | 28 |
30.0 |
|
-12.00V |
-11.40 | -12.00 | -12.60 | 120 | 0 | 0.01 | 0.05 |
